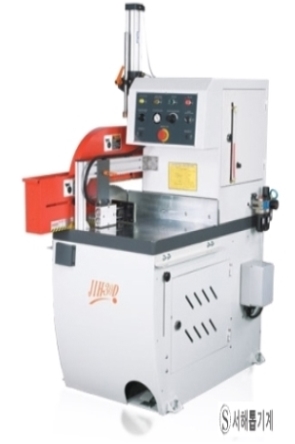

Products Description



Feature

1. To operate the machine, simply treadle on the foot switch, the machine will automatically perform clamping and cutting for convenient operation.


2. Concealed sawblade performs upward cutting. Single or multiple workpieces can be cut simultaneously.


3. While cutting, the oil mist splashes automatically for cooling and lubrication.


4. Cutting feed is driven by a air/hydraulic combination cylinder for extremely stable cutting speed.


5. The machine cabinet painting is baked by high temperature of 200 degree (Powder coating) for resisting bumping without paint peeling off.


6. The machine permits 90 and 45 degree cutting.

	Clamping system is controlled by an independent air cylinder. Clamping system moves on linear guideway, that assures stable clamping Features: The clamping speed and cutting speed can be adjusted according achieve superior cutting performance (Fast and stable cutting). /clamps workpieces securely. Clamping pressure can be adjusted as desired to suit work piece t on the work piece due to over-pressure. to work piece type to The clamping system ype, that avoids damage.
	Adjustable clamping height. Adjustable clamping speed. Adjustable cutting height.  Adjustable cutting speed. The operator may adjust clamping height and speed and cutting height and speed according to work piece size and thickness for saving waiting time. push-pull type safety guard. Horizontal clamping for extremely stable clamping. .Accurately controlled oil mist system. greatly improves lubrication and cooling effect, while reducing trouble to a minimum.
	The convenient door for saw blade replacing. Open the side door to replace the blade. The door can load the whole blade and there won't be any inconvenience for the blade installation as those Atyped machine CHIP OUTLET PORT The chips are exhausted through this outlet port. It eliminates inconvenient cleaning for those chip deposited in the machine.
	Vacuum Oil Mist Unit The vacuum oil mist unit employs vacuum generation principle to transform cutting fluid into oil mist for splashing. It provides lubrication and cooling functions, ensuring no dust deposit and sawblade, high cutting accuracy and long service life of sawblad
