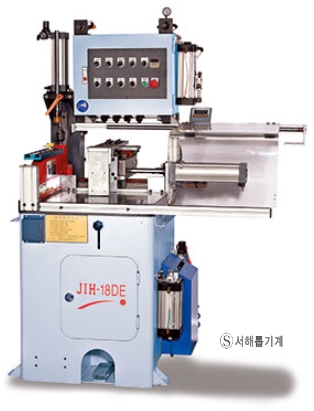

JHI-18DE 자동톱기계
덧글 0
|
2017-01-13 00:00:00
▶제품사양
| MODE | JIH-18D E TYPE |
|---|---|
| Automatic Drive system | Air cylinder drive linear guide way |
| Cutting capacity (H x W) | 350 mm(Same as cutting capacity chart for JIH-18CD TYPE) |
| Max. feed distance (one time) |
125x125, 100x200, 20x280 mm |
| Automatic feed accuracy | ±0.15 mm |
| Cutting Length Display & Set Up |
By LED display |
| Saw spindle speed | 3,200 R.P.M. |
| Saw spindle motor | 7 1/2 HP (10HP opt.) |
| Hydraulic feed motor | 1 HP (Optional) |
| Sawblade size | 18" x 1" bore |
| Air pressure | 4~6 kgs/cm2 |
| Machine dim. (L x W x H) | 1,300 x 870 x 1,800 mm |
| Packing dim. (L x W x H) | 1,420 x 900 x 2,000 mm |
Net / Gross weight |
450 / 600 kgs |
