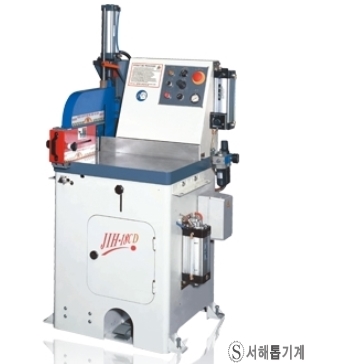

JIH-18CD 상하절단기 덧글 0 | 2017-01-15 00:00:00







  • To operate the machine, simply treadle on the foot switch, the machine will automatically perform clamping and cutting for convenient operation.

  • Concealed sawblade performs upward cutting. Single or multiple workpieces can be cut simultaneously.

  • While cutting, the oil mist splashes automatically for cooling and lubrication.

  • Cutting feed is driven by a air/hydraulic combination cylinder for extremely stable cutting speed.

  • The machine cabinet painting is baked by high temperature of 200 degree (Powder coating) for resisting bumping without paint peeling off.

  • The machine permits 90 and 45 degree cutting.







  1. The use of control panel combined with operation sequence label and instruction labels increase operational convenience.

  2. TABLE: The specially designed table is precision ground and hard chrome plated to avoidscatching on the table surface. No rusting in 10 years of operation.

  3. The one-piece fabricated aluminum alloy fence permits 45° cutting If features light weight and can be easily mounted on the machine.








  1. Adjustable clamping height.

  2. Adjustable cutting speed. The operator may adjust clamping height and speed and cutting height and speed according to work piece size and thickness for saving wait time.

  3. Adjustable cutting speed.








  1. The use of control panel combined with operation sequence label and instruction labels increase operational convenience.

  2. TABLE: The specially designed table is precision ground and hard chrome plated to avoidscatching on the table surface. No rusting in 10 years of operation.

  3. The one-piece fabricated aluminum alloy fence permits 45° cutting If features light weight and can be easily mounted on the machine.











The sawblade spindle is heat treated and plated for greatly increasing the spindle life



SUITABLE FOR CUTTING VARIOUS MATERIALS

Aluminum, Brass, heat sink, PVC, plastic steel, Bakelite, acrylic plastic, Teflon, honeycomb board, wood and other non-ferrous metals.






STANDARD ACCESSORIES

STANDARD ACCESSORIES

OPTIONAL EQUIPMENT
infeed and outfeed roller conveyor、dust outlet、dust hood、dust collector、guard、Hydraulic feed system
