FHC-350SA 유공압반자동톱기계 덧글 0 | 2017-01-02 00:00:00

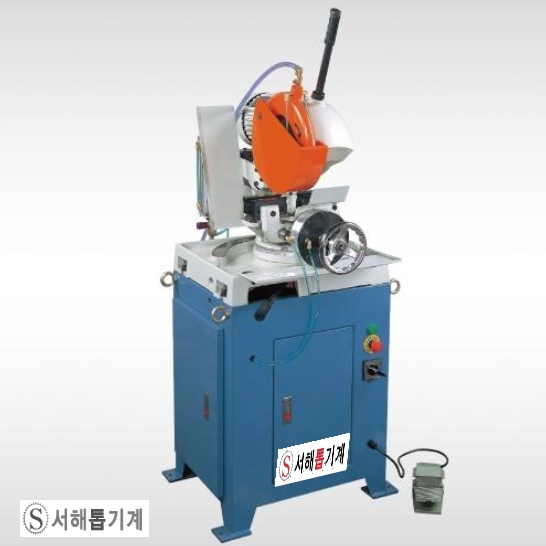

제품명: FHC-350SA 유공압반자동기계






  • 반자동TYPE
  • 자동공압 Double 바이스
  • 자동절단이송
  • HSS Ø250 ~350mm, 표준적합 Ø350mm
  • 380V 3상

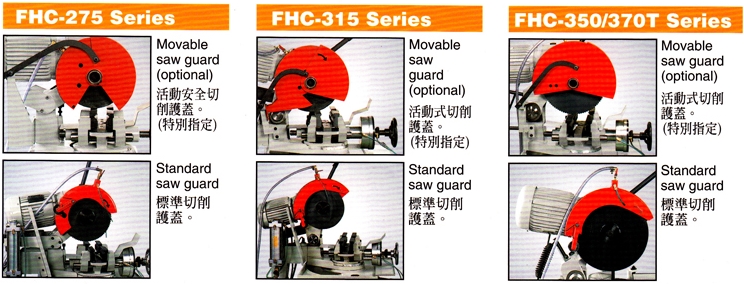

  • 움직이는 안전커버 (옵션)





▶제품사양

MODEL FHC-275 Series FHC-315 Series FHC-300SA Series FHC-330 Series FHC-350 Series
Saw Blade Size
Head Swivel 90° 45° 90° 45° 90° 45° 90° 45° 90° 45°
  mm --- --- 50 40 50 40 55 45 60 50
  mm --- --- --- --- 40x40 35x35 50x50 40x40 50x50 45x45
  mm 75 60 90 90 90 90 101 101 110 75
  mm 75x75 55x55 90x90 85x85 90x90 85x85 90x90 85x85 110x110 90x90
  mm 75x75 55x55 90x90 75x75 90x90 75x75 90x90 85x85 110x110 90x90
  mm 75x75 55x55 90x90 75x75 90x90 75x75 90x90 85x85 110x110 90x90
  mm 75x70 60x55 110x50 100x50 110x50 100x50 85x110 85x85 110x90 110x50




RECOMMENDED PITCH OF SAW BLADE

SOLID BAR PITCH PIPE PITCH
Ø10 - Ø15 4-6 Thin Pipe 3-6
Ø15 - Ø20 6-8 Medium Pipe 6-8
Ø20 - Ø30 8-10 Thick Wall Pipe 8-12
Ø30 - Ø50 10-12

Choose correct pitch of saw blade for perfect cutting.
Ø50 - Ø70 12-14
Ø70 - Ø80 14-16
