FHC-330P 공압반자동톱기계 덧글 0 | 2017-01-07 00:00:00

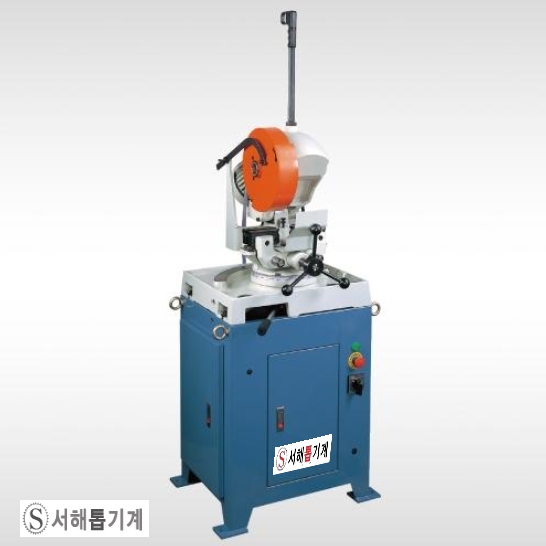

제품명: FHC-330P 공압반자동톱기계




  • 반자동TYPE
  • 자동공압 Double 바이스
  • 자동절단이송
  • HSS Ø250~Ø325mm 적합 표준 Ø300mm
  • 380V 3상

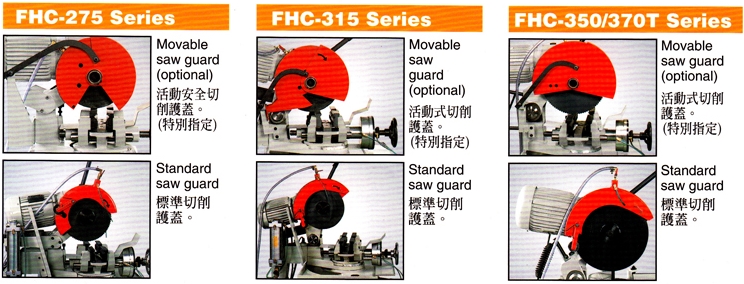

  • 움직이는 안전커버 (옵션)








MODEL FHC-275 Series FHC-315 Series FHC-330 Series FHC-370T Series
Saw Blade Size       Ø360 mm
Head Swivel 90° 45° 90° 45° 90° 45° 90° 45° 30°
mm --- --- 50 40 55 45 70 60 50
mm --- --- --- --- 50x50 40x40 65x65 55x55 45x45
  mm 75 60 90 90 101 101 115 110 90
mm 75x75 55x55 90x90 85x85 90x90 85x85 115x115 100x100 70x70
  mm 75x75 55x55 90x90 75x75 90x90 85x85 105x105 100x100 70x70
  mm 75x75 55x55 90x90 75x75 90x90 85x85 150x100 100x100 70x100
  mm 75x70 60x55 110x50 100x50 85x110 85x85 150x50 100x50 70x50




RECOMMENDED PITCH OF SAW BLADE

SOLID BAR PITCH PIPE PITCH
Ø10 - Ø15 4-6 Thin Pipe 3-6
Ø15 - Ø20 6-8 Medium Pipe 6-8
Ø20 - Ø30 8-10 Thick Wall Pipe 8-12
Ø30 - Ø50 10-12

Choose correct pitch of saw blade for perfect cutting.
Ø50 - Ø70 12-14
Ø70 - Ø80 14-16
