톱기계 > 밴드쏘톱기계 > 대형 밴드쏘

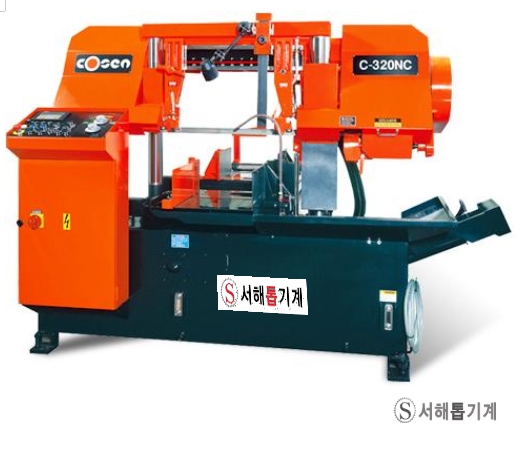

C-320NC자동밴드쏘 덧글 0 | 2017-01-08 00:00:00

▶ 제품 사양

Capacity	Round	320mm
	Square	320mm
	Rectangular (W×H)	380×320mm
Bundle capacity	Width	190~300mm
Bundle capacity	Height	70~140mm
Saw Blade	Speed	20~100m/min (66~328fpm)
	Size (L×W×T)	4240×34×1.1mm
	Tension	Hydraulic (Automatic blade breakage detection)
Motor Output	Saw Blade	5HP (3.7kW)
	Hydraulic	1HP (0.75kW)
	Coolant	1/8HP (0.1kW)
Hydraulic Tank		25L
Coolant Tank		45L
Vise Control		Hydraulic
Automatic Indexing Length	Single	403mm
	Multiple	Max.6500mm
	Restpiece	50mm
Heightop Work Bed		790mm
Net/Gross Weight		2000/2200kg
Floor Space		2010×2000mm
