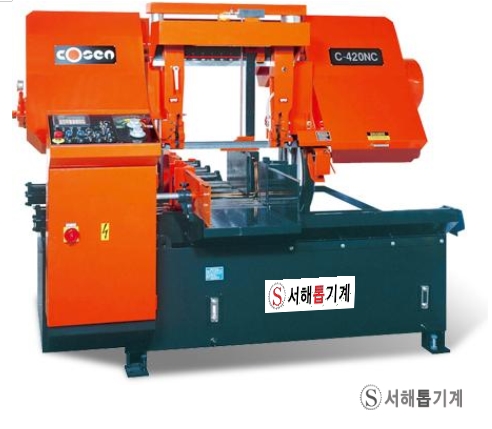

C-420NC자동밴드쏘 덧글 0 | 2017-01-05 00:00:00

▶ 제품 사양

Capacity	Round	420mm
	Square	420mm
	Rectangular (W×H)	420×420mm
Bundle capacity	Width	190~360mm
Bundle capacity	Height	100~180mm
Saw Blade	Speed	20~100m/min (66~328fpm)
	Size (L×W×T)	4770×41×1.3mm
	Tension	Hydraulic (Automatic blade breakage detection)
Motor Output	Saw Blade	7.5HP (5.6kW)
	Hydraulic	2HP (1.5kW)
	Coolant	1/8HP (0.1kW)
Hydraulic Tank		40L
Coolant Tank		85L
Vise Control		Hydraulic Full Stroke Cylinder
Automatic Indexing Length	Single	503mm
	Multiple	Max.6500mm
	Restpiece	60mm
Heightop Work Bed		700mm
Net/Gross Weight		3000/3300kg
Floor Space		2490×2360mm
