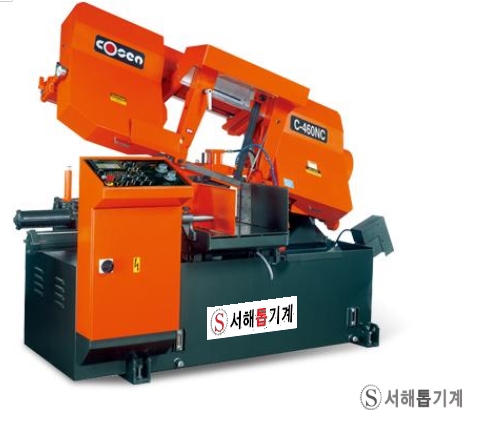

C-460NC자동밴드쏘 덧글 0 | 2017-01-04 00:00:00

▶ 제품 사양

Capacity	Round	460mm
	Square	460mm
	Rectangular (W×H)	460×460mm
Bundle capacity	Width	220~360mm
Bundle capacity	Height	95~230mm
Saw Blade	Speed	20~100m/min (66~328fpm)
	Size (L×W×T)	4670×41×1.3mm
	Tension	Hydraulic (Automatic blade breakage detection)
Motor Output	Saw Blade	7.5HP (5.5kW)
	Hydraulic	2HP (1.5kW)
	Coolant	1/4HP (0.19kW)
Hydraulic Tank		40L
Coolant Tank		80L
Vise Control		Hydraulic Full Stroke Cylinder
Automatic Indexing Length	Single	593mm
	Multiple	Max.6500mm
	Restpiece	90mm
Heightop Work Bed		750mm
Net/Gross Weight		2700/2900kg
Floor Space		2650×2400mm
