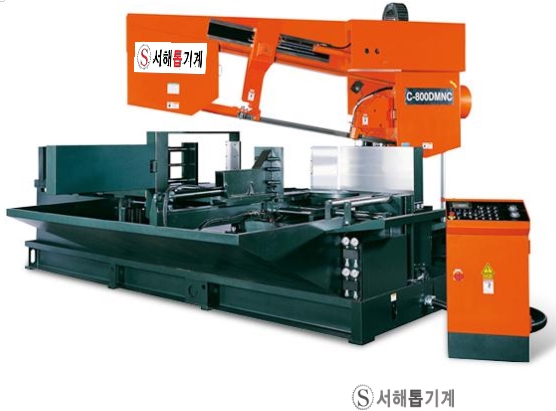

C-800DMNC자동밴드쏘 덧글 0 | 2017-01-02 00:00:00









▶ 제품 사양

Angle
Max. Capacity Round 500mm 450mm 400mm
Rectangular (H×W) 400×800mm 400×550mm 400×400mm
Saw Blade Speed 20-100m/min (66-330 fpm)
Size (L×W×T) 6600L×54W×1.3Tmm (260"×2"×0.050")
Tension Hydraulic
Motor Output Saw Blade 7.5HP (5.6kW)
Hydraulic 3HP (2.25kW)
Coolant pump 1/2HP (0.375kW)
Tank Capacity Hydraulic 85L (22.1 gal)
Coolant 200L (52 gal)
Feeding Length Per Stroke 1500mm (59")
Multi Stroke max. 6500mm (650")
Work Bed Height 1085mm (42.7")
Net Weight 5800 kgs (12760 lbs)
Gross Weight 6400 kgs (14080 lbs)
Floor Space(L×W×H) 5200×3530×2725mm (204.7"×139"×107")
Shipping Space(L×W×H) 5150×2285×2515mm (203"×90"×99")
