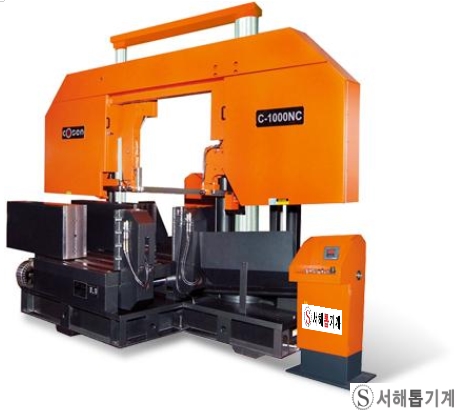

C-1000NC자동밴드쏘 덧글 0 | 2017-01-01 00:00:00

▶ 제품 사양

Capacity	Round	1000mm (39.4")
Capacity	Square	1000×1000mm (39.4"×39.4")
Saw Blade	Size (L×W×T)	9400L×67W×1.6T (370"×2.64"×0.06")
	Speed	15-80 (m/min) (60Hz) (50-264ft/min)
	Tension	Hydraulic Controlled
	Guide	Tungsten Carbide Blade Guide (Hydraulic Clamping Force)
	Arm	Hydraulic controlled
	Cleaning	Wire brush with flexible drive shaft driven by brush motor
Motor Output	Blade	15HP (11.25kW)
	Hydraulic	3HP (2.2kW)
	Coolant	1/4HP (0.2kW)
Feeding	Mode	Hydraulic automatic, NC programmable, 99 steps
	Single stroke	500mm
	Multi stroke	Max. 6500mm (Max. 650")
Tank Capacity	Hydraulic Oil	100 Liter
Tank Capacity	Coolant	120 Liter
Rest piece		400mm
Kerf Compensation		Automatic
Vise Control Method		Hydraulic, Full stroke cylinder
Workbed Height		630mm (24.8")
Net Weight		11000 kgs
Floor Space (L×W×H)		2050×4400×3500mm (87"×173"×138") (without roller table)
